1.5mm Narrow Pixel Pitch Direct View LED
Front or rear access with internal power
VS

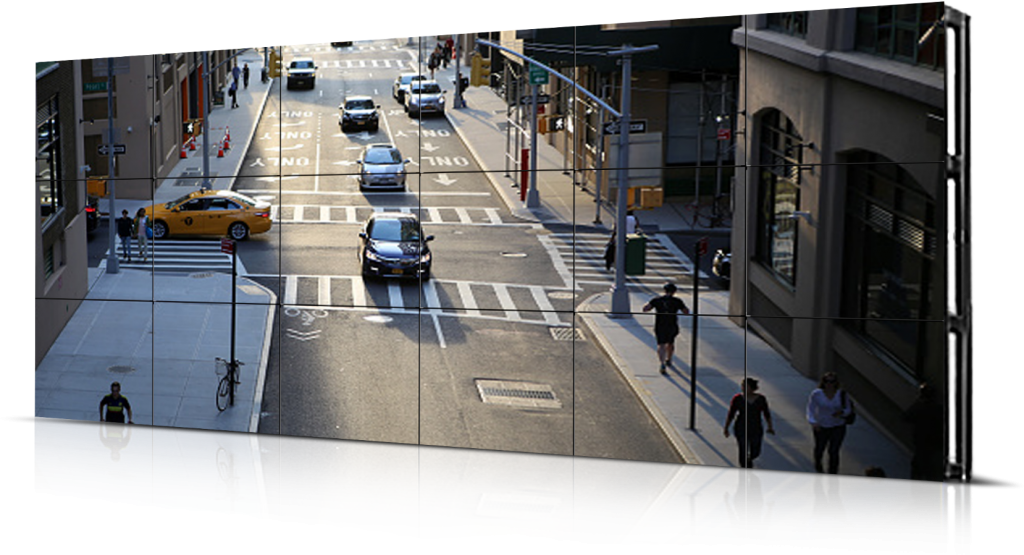

VS-15NP180 Direct View LED
fkfkhk
Top reasons to choose VS-Series
Pixel Pitch
1.50mm
LED Type
SMD 3-in-1
LED Lifetime
100,000 hrs.
Resolution (HxV)
Cabinet 320 x 360 pixels
Module 160 x 180 pixels
Frame Rate
50/60Hz
Dimensions (WxHxD)
480 x 540 x 90mm
Contrast Ratio
16,000:1
Brightness
Bright 800 cd/m2
Normal 500 cd/m2
Eco 190 cd/m2
Designed to meet the highest standards demanded by command and control applications
Outstanding performance, intelligent patented features and low power consumption make the VS-15NP180 an absolutely unique solution in the professional control room market. The stunning performance of Mitsubishi’s direct view LED makes it the perfect choice for large scale control rooms or areas where high ambient light is a challenge. Specially designed 3-in-1 SMD (RGB) LED packages deliver up to 800 cd/m² brightness with excellent contrast and 100,000 hour lifespan. A pixel pitch of 1.5mm ensures the crystal-clear display of fine detail.
When long lifespan and total reliability are critical requirements
Over two years in development, the new screen has several patented features which make it uniquely suited to control room roles where long lifespan and total reliability are critical requirements.
A patented anti-burn feature allows static graphics to be displayed for long periods of time without adversely affecting LED performance or lifespan. Overall, the display is rated for 100,000 hours of continuous operation, with its antiburn feature ensuring that LED luminance and chromaticity remains uniform over the life time of the screen. Dual-loop signal inputs and redundant power supplies ensure the display will continue to function in the unlikely event of an LED unit power failure.
Dynamic power consumption
Dynamic power consumption features actively monitor image luminance and adjust power output accordingly to optimize power consumption and reduce operator eye-fatigue – a critical factor in control room applications not addressed by digital signage displays. Mitsubishi has incorporated the Natural Color Matrix system found in its DLP products into the new LED screen, plus a specially developed 2-dimensional noise reduction system to reduce visible noise in compressed content such as MPEG video. Available in 1.25, 1.5, 2.0 and 2.5mm pixel pitch LED.
LED mounting solutions
Mitsubishi Electric offers a variety of stylish mounting options for the NPP Direct View LED Display Walls for a quick and easy installation on any video wall configuration. These LED mounts can be customized to match any new or existing control room environment. Click here to see our custom mounts designed and fabricated by Draper.
Display
Pixel Pitch
1.5mm
LED Type
SMD 3-in-1
LED Lifetime
100,000 hrs.
Resolution (HxV)
- Cabinet 320 X 360 pixels
- Module 160 X 180 pixels
Full HD Resolution Dimensions
130” (2880mm x 1620mm / 113.4” x 63.8”)
Cabinet Array @ 1080P (HxV)
6 x 3
LED Module Array (WxH)
2 x 2 per cabinet
Pixel Density
444,444 pixels/m2
Color Processing
14-bit color per each RGB (internal processing: 16-bit)
Frame Rate
50/60Hz
Dimensions (WxHxD)
480 x 540 x 90mm
Weight
VS-15NP180F 28.66 lbs. | VS-15NP180R 27.34 lbs.
Service Access
VS-15NP180F front access | VS-15NP180R rear access
Cooling
Fan less
Brightness
Bright 800 cd/m2
Contrast Ratio
16,000:1
Viewing Angle
Horizontal Angle 170o
Vertical Angle 170o
Color Temperature
3200K – 9300K
Power Consumption
- Bright 185 W
- Normal 135 W
- Eco 85 W
Input Voltage
AC100-240V, 50/60Hz
Power Connection
AC input / output x1
Video Input
DVI-D (with HDCP) x 2 up to 50-meters long DVI cable supported
Misc
EMC
- FCC part15 Subpart B Class A
- ICES-003 Issue No.6 Class A
- EN62311
- EN55032 Class A
- EN55024
- EN61000-3-2
- EN61000-3-3
- KN32 Class A
- KN35
- AS/NZS CISPR 32 Class A
- VCCI Class A
- JIS C 61000-3-2
- EMC Directive 2014/30/EU line-up
Safety Approval
- UL60950-1
- CSAC22.2 No.60950-1
- EN60950-1
- K60950-1
- AS/NZS60950.1
- Low Voltage Directive 2014/35/EU
Service & Support
Specifications are subject to change without notice.
Accessories (Optional)
VELMITM03-LCRX
Velocitydvi-3 Fiber Optic Input Card
Display Type
Velocitydvi-3 Fiber Optic Input Card
Signal Input Terminal
SFP x2
RGB Input Scanning Frequency
Velocitydvi-3 Fiber Optic Input Card
Functions
Image scaling (shrink and zoom) Frame rate conversion
Display Type
1 lb.
Signal Input Terminal
10 watts per unit
